Overview

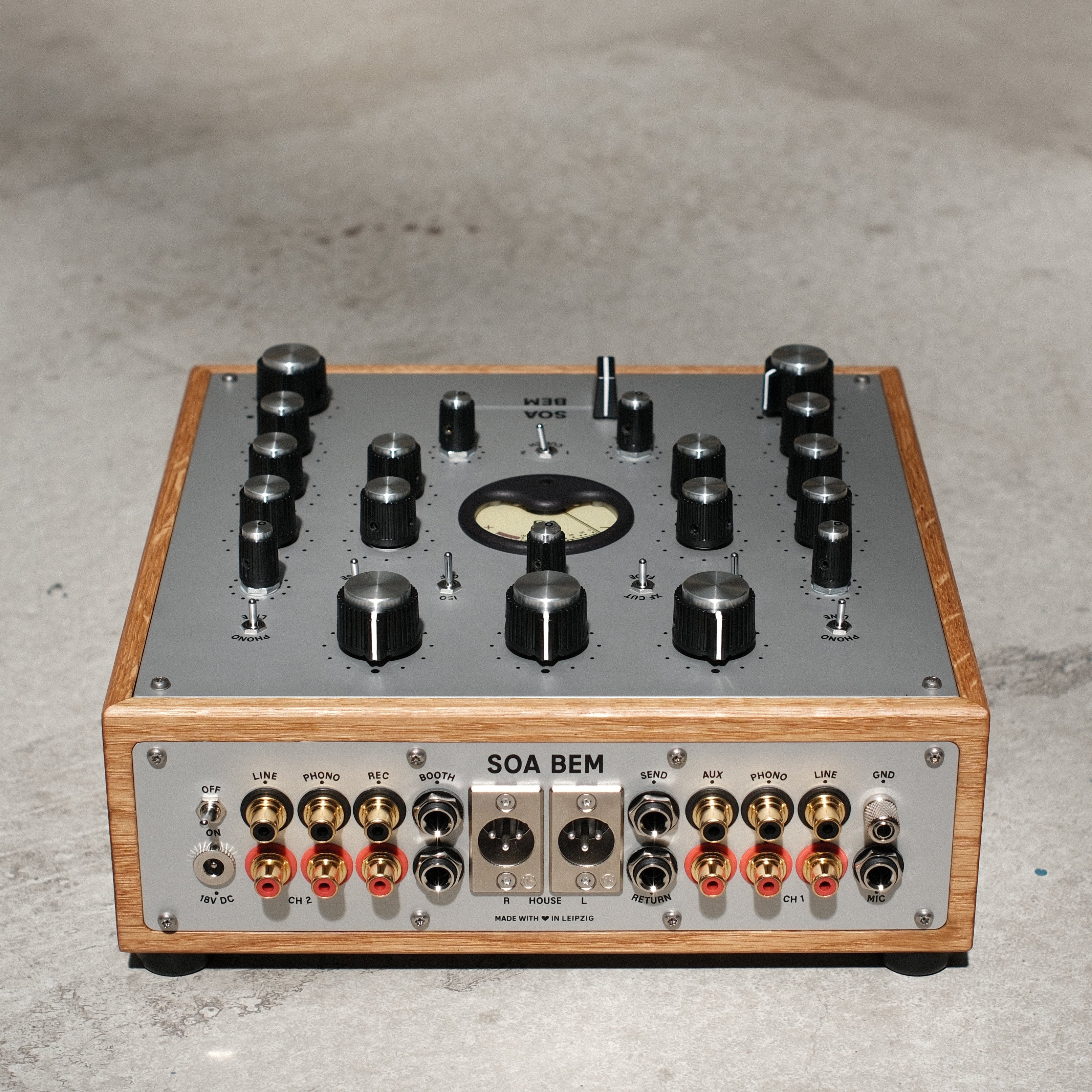

Connections
Inputs
2x Line, RCA, Unbalanced, Unity Gain
2x phono, RCA, unbalanced, +42 dB gain
1x Auxiliary, RCA, Unbalanced, +12 dB Gain
1x microphone, TRS, balanced, +65 dB gain
1x Effect Return, TRS, Unbalanced, +10 dB Gain
Outputs
1x House, XLR, Balanced, +27 dBU
1x Booth, TRS, Balanced, +27 dBU
1x Record, RCA, Unbalanced, -10 dBV
1x Effect Send, TRS, Unbalanced, -10 dBV
1x Headphones, TRS, Unbalanced, 1W into 30 Ω
Components

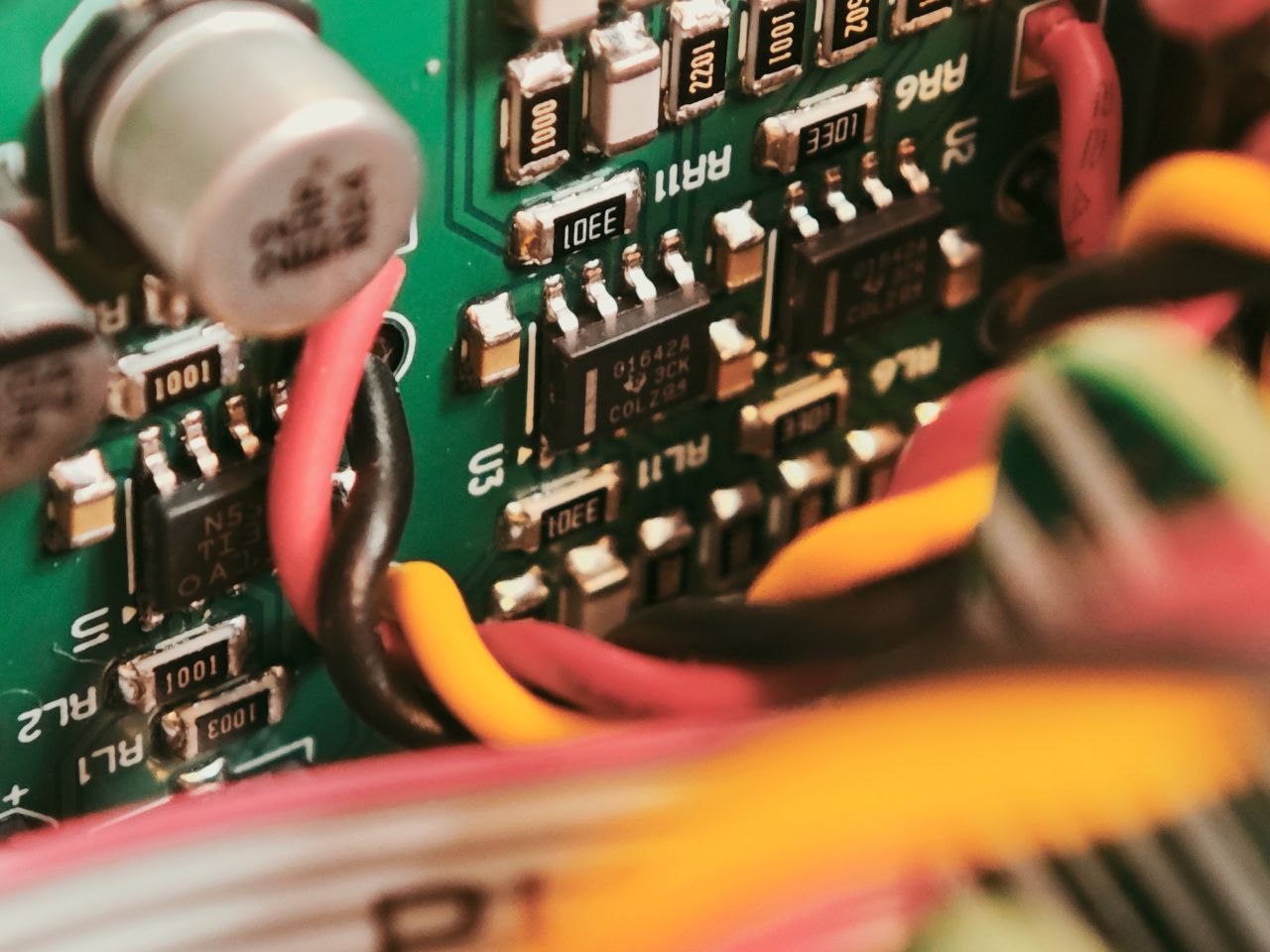

Electronics
- Texas Instruments Op-Amps
- Thin film resistors (0.5% - 1%)
- NP0 capacitors for filters
- Low ESR electrolytic capacitors for DC blocking
- Meanwell Medical power supply
Mechanics
- ALPS RK27 and RK16 potentiometers
- Innofader mini pro crossfader
- Miyama toggle switches

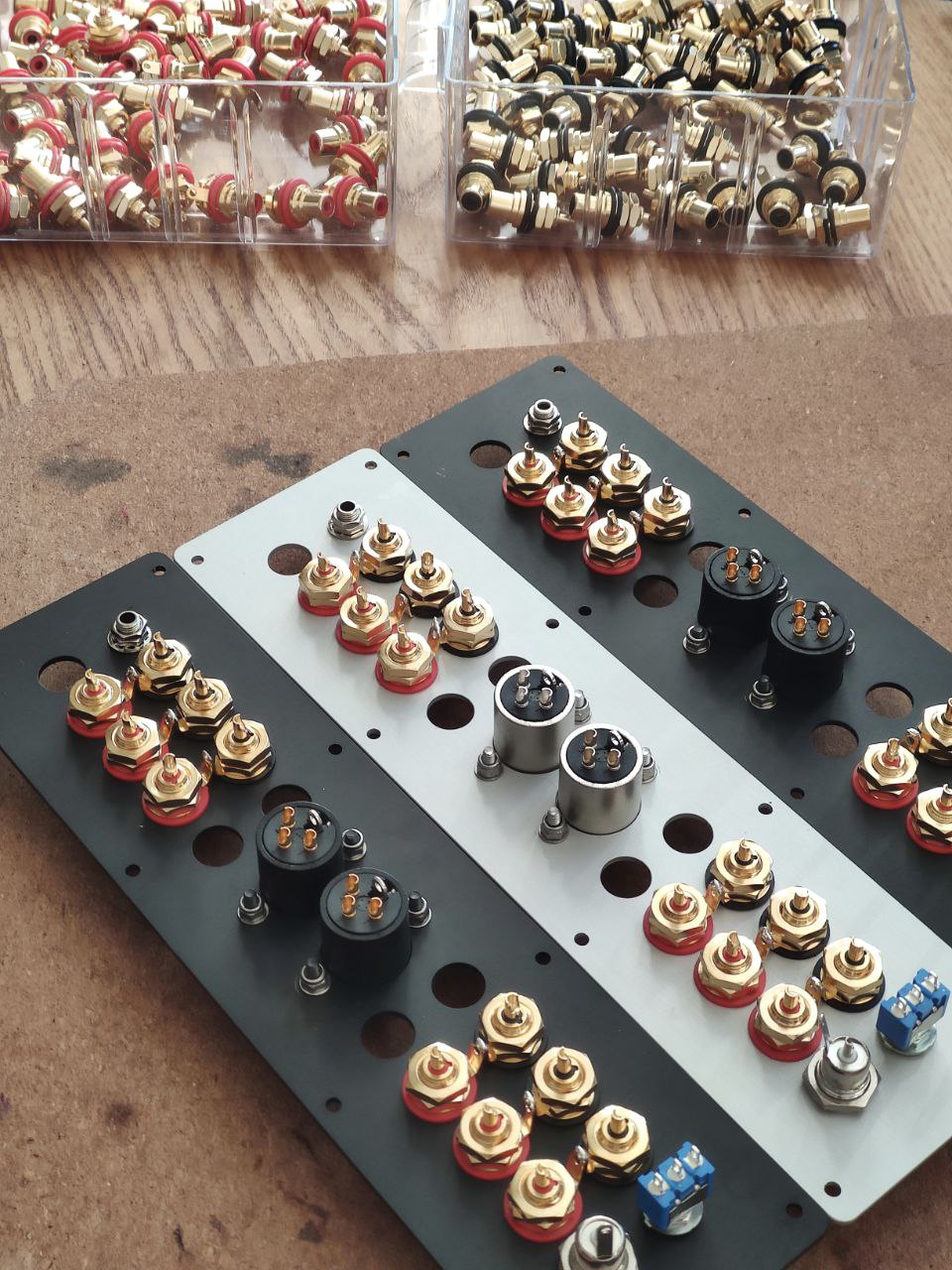

- Neutrik RCA, XLR, TRS connectors
- Classic rotary knobs
Housing
- CNC-milled European oak
- Anodized front and rear panels

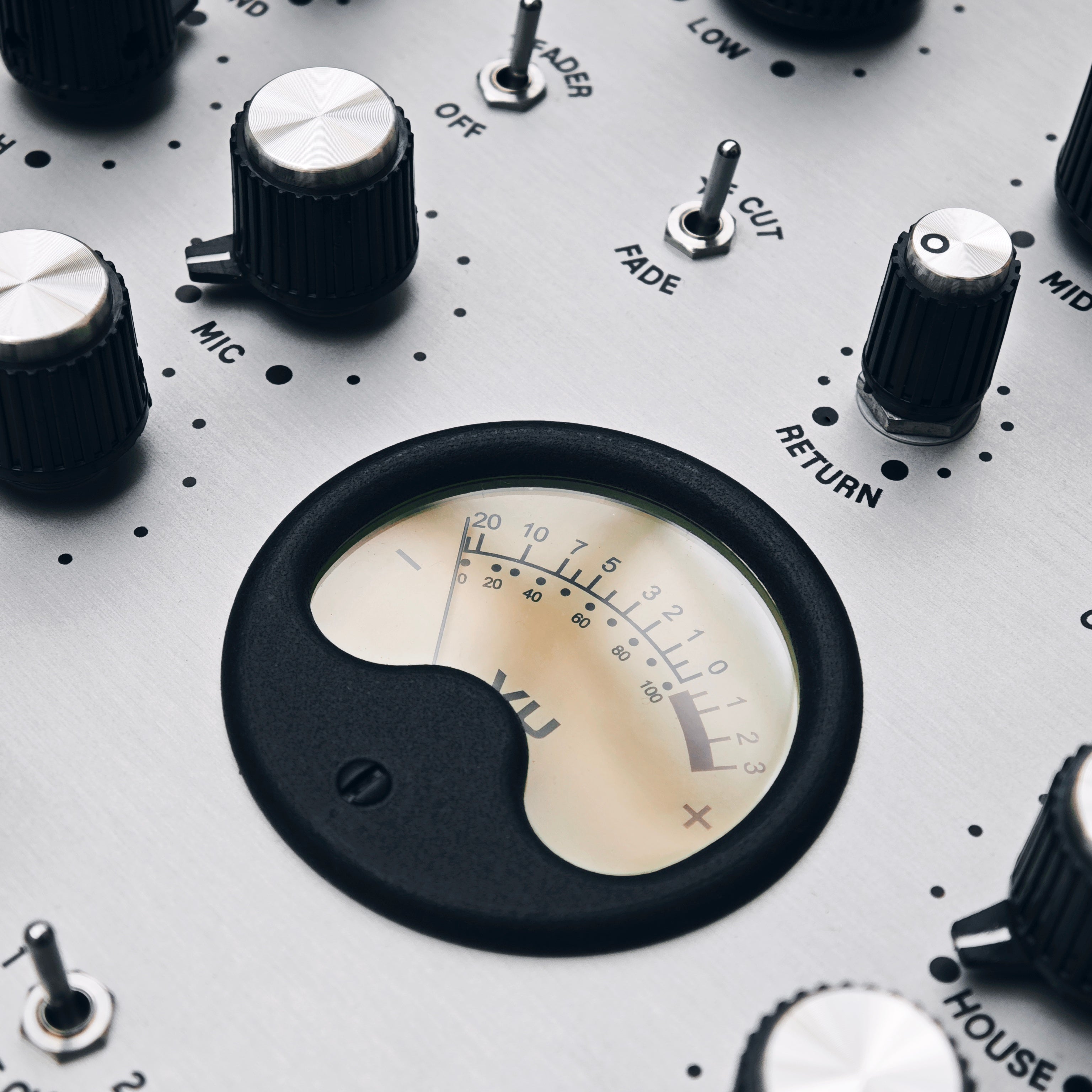

- Large, central VU meter
- Waterproof hard case
Channel EQ
Choose between a channel equalizer with natural sound (-24 dB attenuation) or a flexible channel isolator with full cut.
Channel Equalizer
Attenuation / Boost: -24 dB / + 9 dB
Frequencies: 50Hz, 1kHz, 20kHz
Channel Isolator
Attenuation / Boost: -∞ dB / + 9 dB
Crossover Frequencies: 230 Hz, 4.5 kHz
Master ISO
The master isolator uses powerful 4-pole filters with a slope of 24 dB per octave to completely isolate frequencies for creative transitions or targeted dynamics. For maximum sonic fidelity, the circuit can be completely bypassed via a relay-controlled true bypass. As with the channel EQ, you can also choose whether the controls have tactile center detents or not.
4-pole isolator (24 dB / Octave)
Attenuation / Boost: -∞ dB / + 9 dB
Crossover Frequencies: 320 Hz, 3.2 kHz
True bypass switched by relay

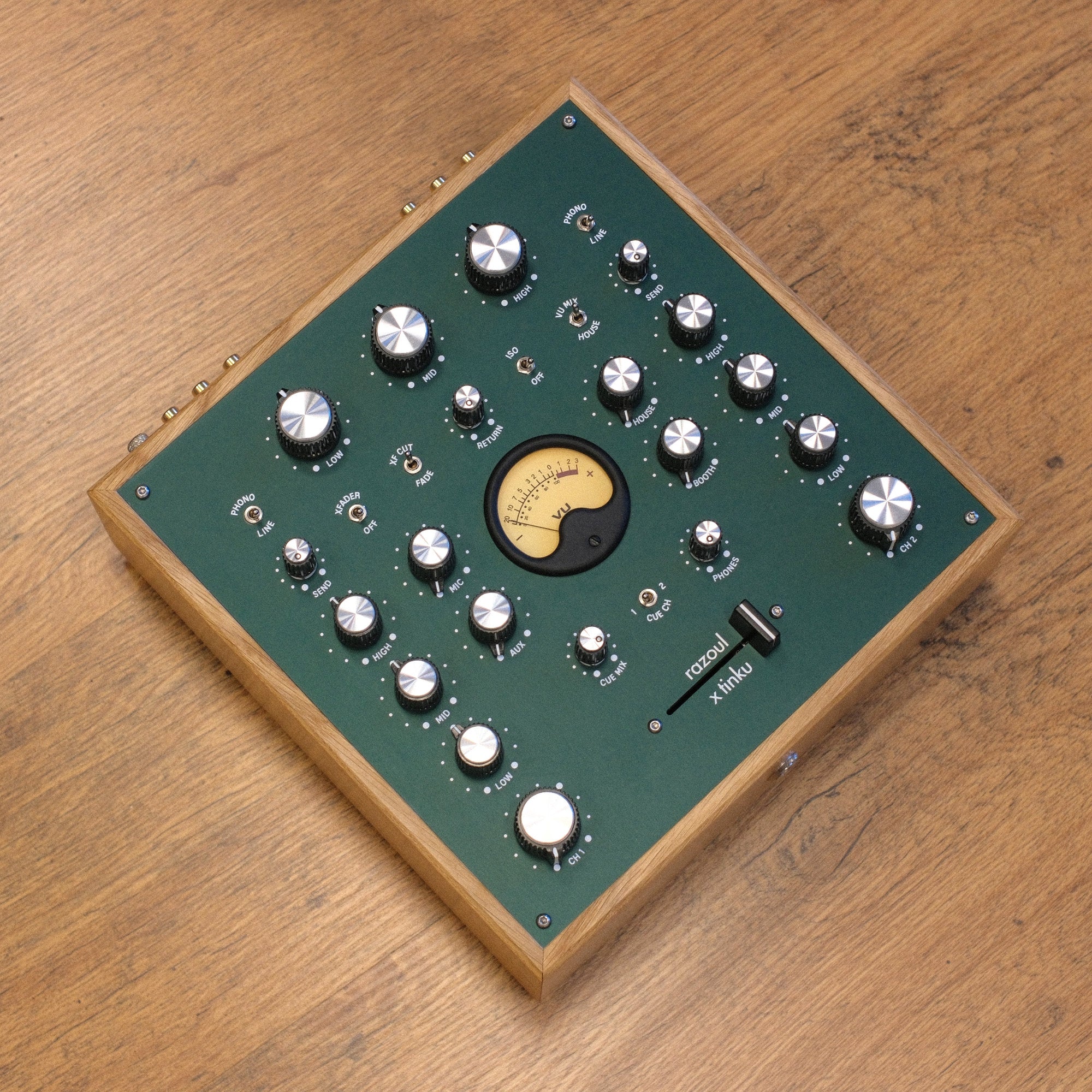

Crossfader
The OLHO-2R complements the classic rotary controls with a maintenance-free Innofader mini pro, which enables rapid cuts via VCA technology outside the signal path. The crossfader curve can be switched between "cut" and "fade" and can even be internally adjusted to a cut-in of just 1 mm. Thanks to capacitive non-contact technology, the system is extremely durable and ideal for precise cutting and scratching.
Specifications
No Crossfader Version:
House & Booth Outputs (Balanced):
THD: < 0.0004% Line In (2V RMS) at 1 kHz, Unity Gain
THD+N: <0.00095% Line In (2V RMS) at 1 kHz, Unity Gain
Record Output (Unbalanced):
THD: < 0.0005% Line In (2V RMS) at 1 kHz, 0 dBU Output
THD+N: < 0.0007% Line In (2V RMS) at 1 kHz, 0 dBU Output
Headphone Output (Unbalanced):
THD: < 0.0005% Line In (2V RMS) at 1 kHz, 1 W into 30Ω
THD+N: < 0.0006% Line In (2V RMS) at 1 kHz, 1 W into 30Ω
Crossfader Version:
House & Booth Outputs (Balanced):
THD: < 0.002% Line In (2V RMS) at 1 kHz, Unity Gain
THD+N: <0.008% Line In (2V RMS) at 1 kHz, Unity Gain
Record Output (Unbalanced):
THD: < 0.002% Line In (2V RMS) at 1 kHz, 0 dBU Output
THD+N: < 0.008% Line In (2V RMS) at 1 kHz, 0 dBU Output
Headphone Output (Unbalanced):
THD: < 0.0005% Line In (2V RMS) at 1 kHz, 1 W into 30Ω
THD+N: < 0.0006% Line In (2V RMS) at 1 kHz, 1 W into 30Ω

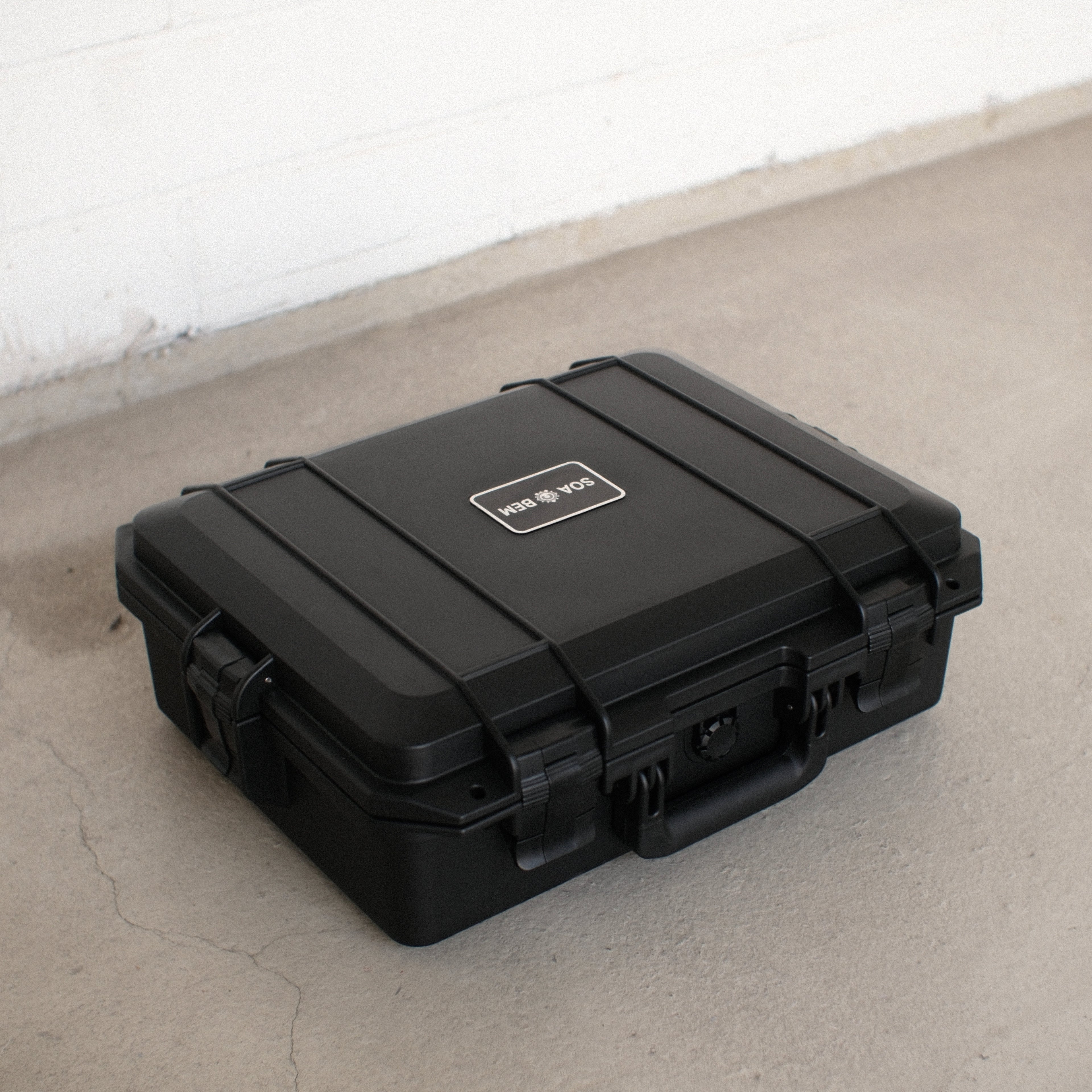

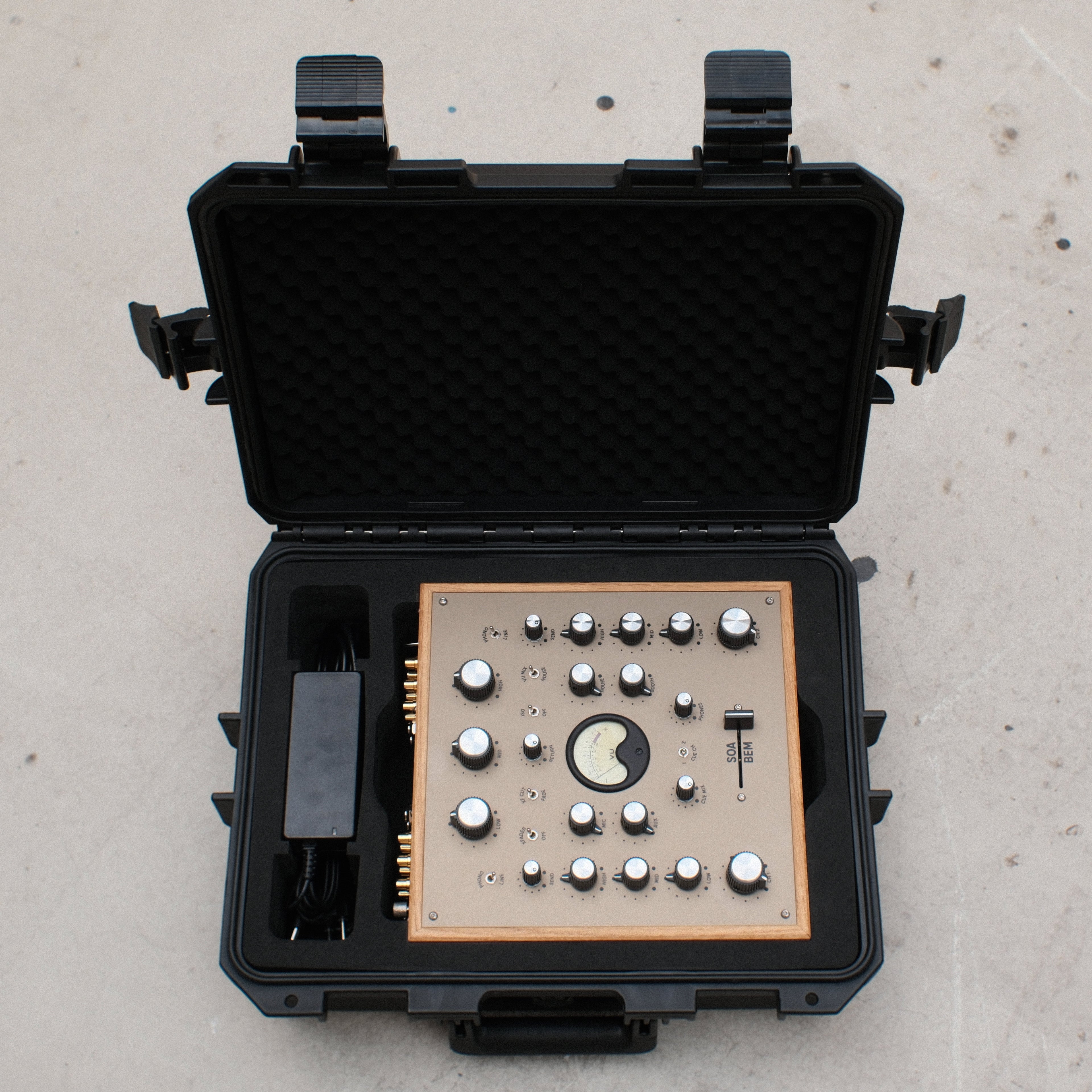

Scope of delivery
The mixer comes in a robust, waterproof hard case with a custom-fit EVA foam insert, which is already included in the price. The package also includes the appropriate power adapter and a power cord (IEC) suitable for your country.
